Titanium is a strong, lightweight, and corrosion-resistant metal known for its exceptional strength-to-weight ratio and high performance in extreme environments. It is commonly alloyed with elements such as aluminum, vanadium, and molybdenum to enhance its mechanical and chemical properties.
Titanium and its alloys are widely used in aerospace, marine, medical, chemical processing, and industrial applications due to their high resistance to corrosion, especially from seawater and chlorine-based compounds. Common titanium grades include Grade 2 (commercially pure), Grade 5 (Ti-6Al-4V), and Grade 7 (with palladium for enhanced corrosion resistance), conforming to standards like ASTM B348, B265, and B381.

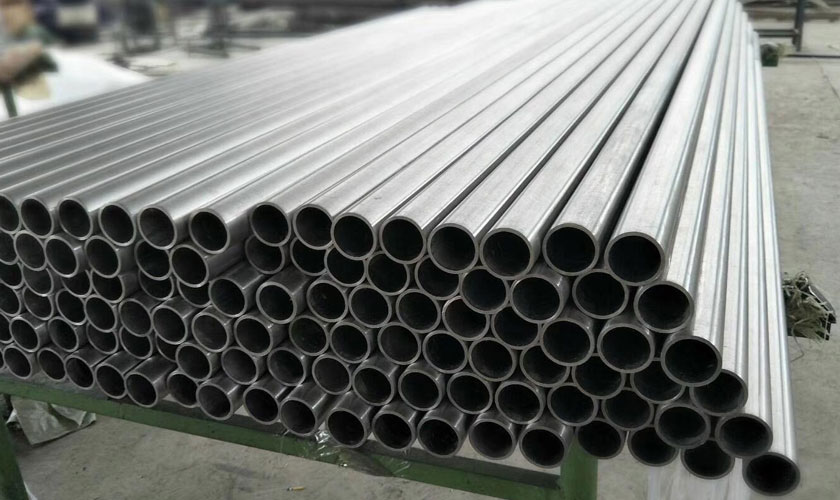

Pipe Size: OD: 0.8 – 160.0 mm, WT: 0.05 – 8.0 mm, L: 10.0 – 12000.0 mm
Tube Size: OD: 80.0 – 500 mm, WT: 4.0 – 50.0 mm, L: 10.0 – 1000 mm
Material: ASTM B337/338, ASTM B861/862, AMS 4942 — Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, etc.
Sheet Sizes: Thickness: 0.5 – 4.0 mm, Width ≤ 1250 mm, Length ≤ 3000 mm
Plate Sizes: Thickness: 4.0 – 100 mm, Width ≤ 2600 mm, Length ≤ 10000 mm
Material: ASTM B265, ASTM F67/F136, AMS 4911 — Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, etc.
Sizes: 1/2" through 48" NPS, Sch 10S and 40S (Other sizes and schedules available on request)
Material: Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, etc.
Size Range: M10 to M36
Length: Up to 5 meters
Material: Titanium Gr1, Gr2, Gr3, Gr4, Gr5 (ELI), Gr7, Gr9, etc.
Standard: ANSI, ASME, BS, DIN, EN Flanges, etc.
Size: 1/2″ to 18″
Class / Pressure Ratings: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Material: Titanium Gr1, Gr2, Gr3, Gr4, Gr5 (ELI), Gr7, Gr9, etc.
Range: Diameter 6.0 – 200 mm, Length 1000 – 6000 mm
Standards: ASTM B348 / ASME SB348 — Gr2, Gr5, Gr7
Size: 5 mm to 9 mm
Standard: ASTM B348 / ASME B348
Range: 15NB to 100NB (DN6 ~ DN100)
Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr11, Gr12, Gr23
Dimensions: API602, ASME B1.20.1, ASME B16.11, ASME B16.5, API598
Specification: ASTM B381 / B367 / ASME SB381 / SB367
Size: DN15 ~ DN50, NPS 1/2″ ~ 2″
Pressure Rating: PN1.0MPa ~ PN420MPa, Class 150 ~ 2500
| Element | Grade 1 (CP Ti) | Grade 2 (CP Ti) | Grade 5 (Ti-6Al-4V) | Grade 7 (CP Ti + Pd) |
|---|---|---|---|---|
| Titanium (Ti) | 99.5% min | 99.0% min | Balance | Balance |
| Oxygen (O) | 0.18% max | 0.25% max | 0.20% max | 0.25% max |
| Iron (Fe) | 0.20% max | 0.30% max | 0.30% max | 0.20% max |
| Carbon (C) | 0.08% max | 0.08% max | 0.08% max | 0.08% max |
| Nitrogen (N) | 0.03% max | 0.03% max | 0.05% max | 0.03% max |
| Hydrogen (H) | 0.015% max | 0.015% max | 0.015% max | 0.015% max |
| Aluminum (Al) | - | - | 5.5 - 6.75% | - |
| Vanadium (V) | - | - | 3.5 - 4.5% | - |
| Palladium (Pd) | - | - | - | 0.12 - 0.25% |
| Property | Grade 1 (CP Ti) | Grade 2 (CP Ti) | Grade 5 (Ti-6Al-4V) | Grade 7 (CP Ti + Pd) |
|---|---|---|---|---|
| Tensile Strength | 240 MPa (35 ksi) min | 345 MPa (50 ksi) min | 895 MPa (130 ksi) min | 345 MPa (50 ksi) min |
| Yield Strength (0.2% offset) | 170 MPa (25 ksi) min | 275 MPa (40 ksi) min | 830 MPa (120 ksi) min | 275 MPa (40 ksi) min |
| Elongation (%) | 24% min | 20% min | 10-15% | 20% min |
| Hardness (HRB) | 70 max | 80 max | 36-40 HRC | 80 max |
| Modulus of Elasticity | ~105 GPa | ~105 GPa | ~113 GPa | ~105 GPa |
| Density | 4.51 g/cm³ | 4.51 g/cm³ | 4.43 g/cm³ | 4.51 g/cm³ |
| Melting Point | 1660°C | 1660°C | 1660°C | 1660°C |
